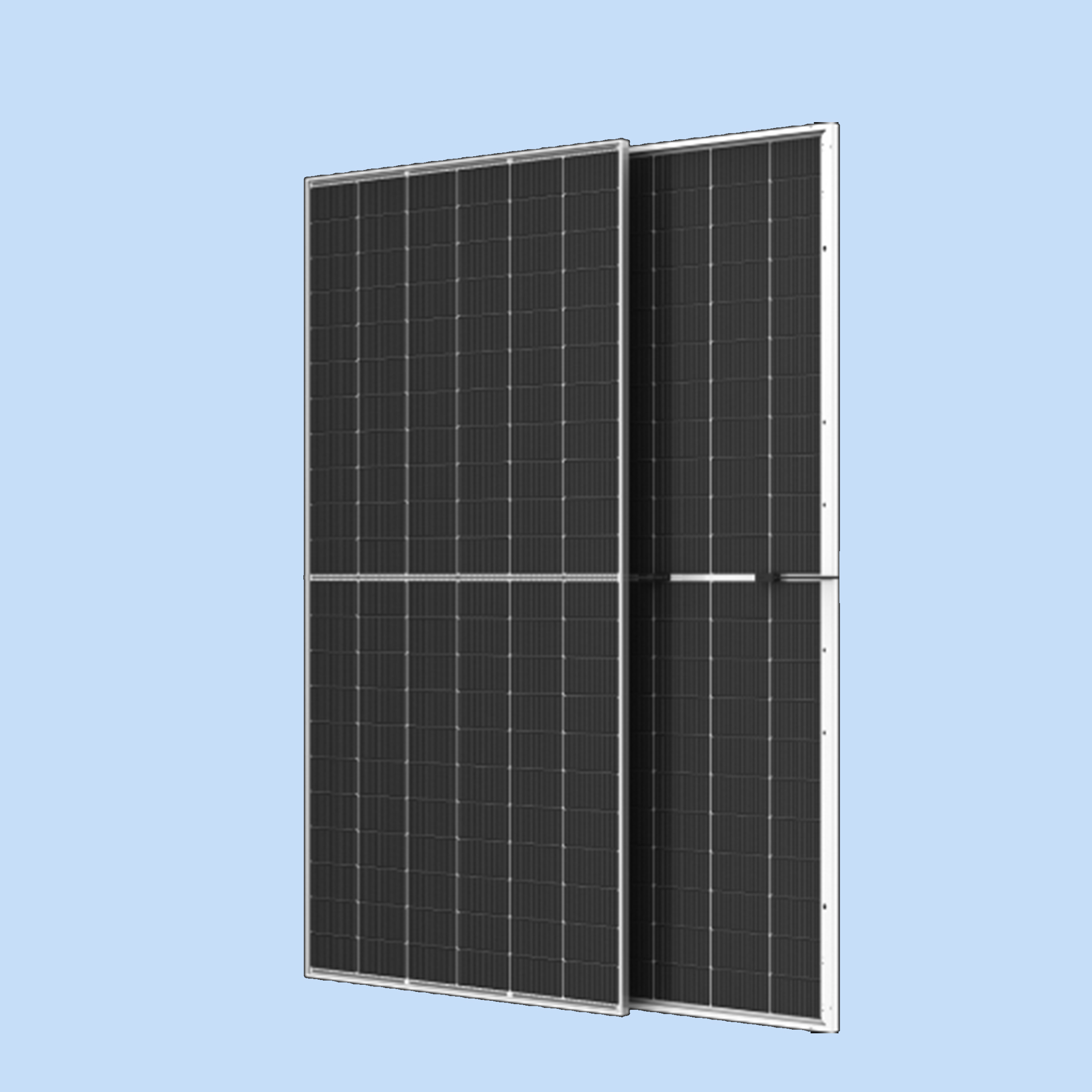

Module Type: Trina Solar Panel 705W Bifacial Monocrystalline
Maximum Power Output: 705W (STC conditions)
Power Tolerance: 0~+5W
Maximum Efficiency: Up to 22.5%
Open Circuit Voltage (Voc): 48.8V
Short Circuit Current (Isc): 13.96A
Maximum Power Voltage (Vmp): 44.7V
Maximum Power Current (Imp): 15.78A
Module Dimensions: 2384 x 1303 x 33 mm
Weight: 38.3 kg
Number of Cells: 132
Glass Type: 2.0 mm, anti-reflection coated
Frame: Anodized aluminum alloy
Junction Box: IP68, with 3 diodes
Cable Cross Section: 4 mm²
Connector Type: MC4-compatible
Maximum System Voltage: 1500V
Series Fuse Rating: 35A
Operational Temperature: -40°C to +85°C
Product Warranty: 12 years
Performance Warranty: 30 years linear power output.
